Electrolysis Cells & Core Components

Electrolysis cells, electrode assemblies and core components for sodium hypochlorite generation, electro-chlorination, hydrogen-related electrolysis and selected industrial electrolysis applications.

Describe Your Cell Configuration →Back to Products →
NaClO CellsHydrogen ElectrolysisContainerized System ComponentsPCB Plating, Electrowinning & Surface TreatmentCell ComponentsSpecifications

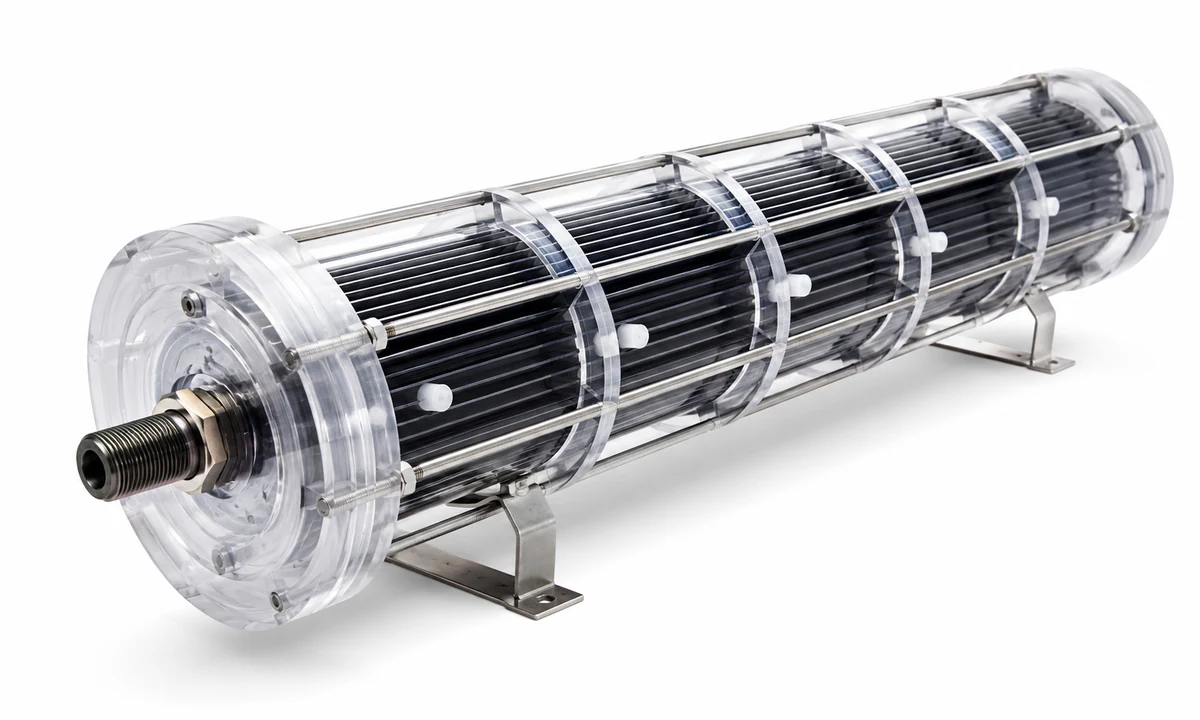

Electrolysis cell and core electrochemical unit

Main product types

Configured around actual operating conditions

For product selection and proposal preparation, please provide the application, operating medium, target output, drawings or dimensions, quantity, and project requirements. TJNE evaluates cell configuration according to industrial operating requirements rather than treating these items as standard catalogue products.

Sodium hypochlorite electrolysis cell
01

Sodium Hypochlorite Electrolysis Cells & Components

For on-site disinfectant generation systems, the electrolysis cell and electrode configuration depends on available-chlorine target, brine or seawater conditions, current load, flow conditions and installation interface.

  • For municipal and industrial water disinfection
  • Supply scope focuses on electrolysis cells, electrode assemblies and related core components
  • Configured according to available chlorine target, brine / feed-water conditions and operating mode
Request product review →
hydrogen electrolysis cells and related equipment
02

Hydrogen Electrolysis Cells

TJNE supplies hydrogen electrolysis cells and related core components for projects where water quality, capacity, operating route and interface requirements must be defined before selection. Configuration is reviewed against hydrogen output, pressure, purity, current load, footprint and operating mode.

  • Hydrogen electrolysis cells and related components
  • Hydrogen electrolysis cells for defined production requirements
  • Configuration reviewed according to capacity, supporting facilities, water quality and operating mode
Request product review →
Core components for containerized hydrogen system
03

Components for Containerized Hydrogen Systems

For packaged or containerized hydrogen systems, TJNE can supply electrolysis cells, electrode assemblies and related core components for system integration. Packaged-system design, HVAC, utilities, controls and site integration remain within the system integrator or EPC scope unless otherwise defined.

  • Electrolysis cells and core components for packaged hydrogen systems
  • Interfaces reviewed against packaged-system and site conditions
  • System-level HVAC, utilities and controls coordinated by the system integrator / EPC
Request product review →

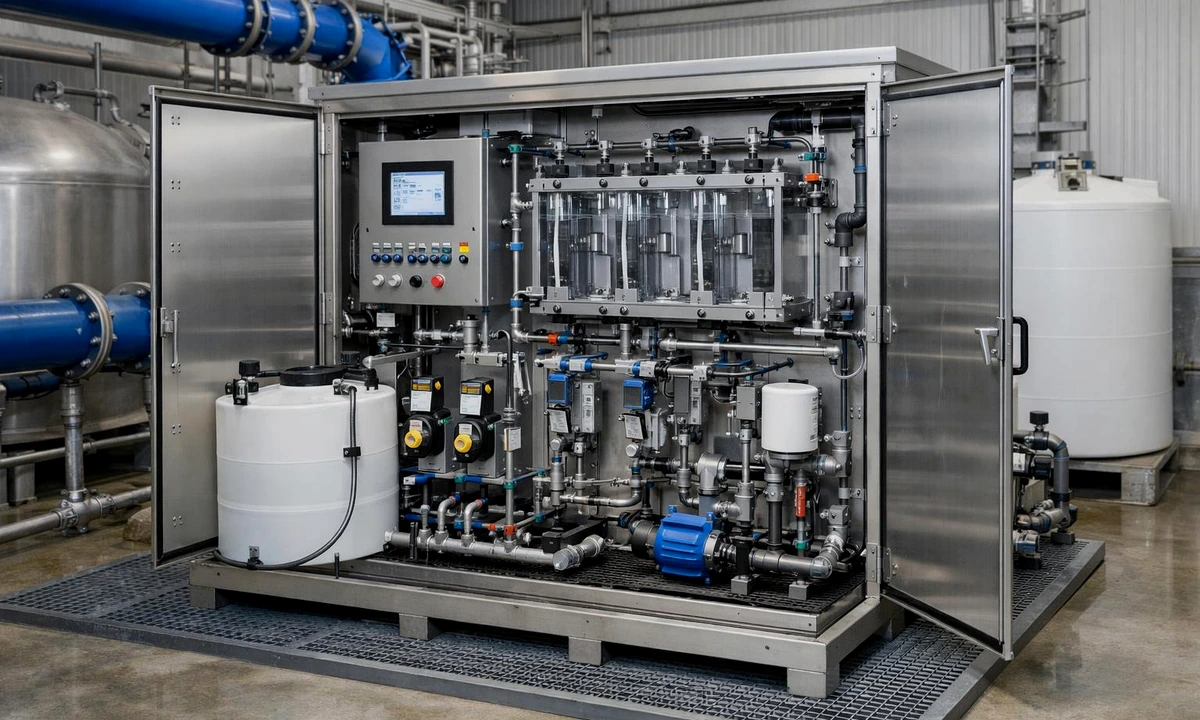

Industrial electrolysis core unit
04

Industrial Electrochemical Cells & Core Components

Industrial electrolysis cells and related components can be configured for selected process applications where electrolyte composition, current density, flow path, electrode arrangement and electrical interface define the product configuration.

  • Application-specific cell structure and electrode materials
  • Core units for integration into industrial equipment packages
  • Designed around operating medium, current and duty cycle
Request product review →

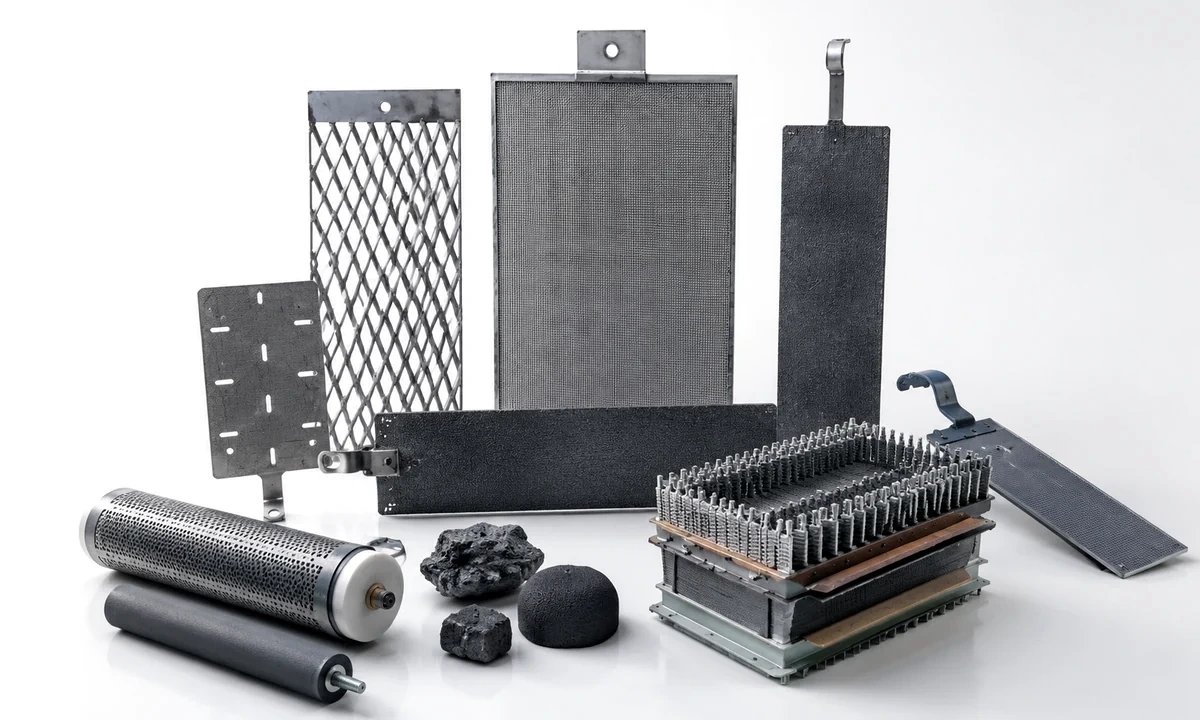

Electrode and cell components
05

Cell Components & Electrode Assemblies

TJNE also supports electrode assemblies, functional electrode components and cell-related parts for electrochemical equipment, with product design adapted to installation interface and operating conditions.

  • Custom electrode dimensions and connection structures
  • Suitable for replacement, pilot testing and new equipment projects
  • Supports cell-level technical communication and technical proposal
Request product review →

Common product terms

Electrolysis cell search terms and aliases

Typical inquiries may use electrolysis cell, electrochemical cell, sodium hypochlorite electrolysis cell, electro-chlorination cell, hydrogen electrolysis cell, hydrogen-system electrolysis component or industrial electrolysis core component. TJNE reviews these requirements by output target, electrolyte, current, voltage, flow and interface conditions.

Sodium hypochlorite electrolysis cellHydrogen electrolysis cellIndustrial electrolysis cell电解槽次氯酸钠电解槽电氯化电解槽制氢电解槽

Typical specification range

General configuration parameters

These values are indicative ranges across common configurations. Final specification is reviewed against operating conditions, electrolyte, drawings and project scope before a technical proposal.

Cell configuration
NaClO · hydrogen electrolysis · containerized hydrogen · industrial electrolysis
Selected by process objective
Electrode set
MMO / Ti / Pt / custom assemblies
Matched with medium and current
Capacity stage
Lab · pilot · industrial modules
Confirmed by flow rate, current and target output
Operating medium
Brine · wastewater · acidic / alkaline electrolytes
Chemistry review required
Key inputs
Current · voltage · flow · temperature
Needed before a technical proposal
Supply range
Cells · electrodes · core components
Full system scope only when defined

Indicative only · subject to technical review

Static technical screening data

Electrolysis cell and component scope

TJNE reviews electrolysis cells and core electrochemical components by application. The table helps clarify supply boundaries before a technical proposal.

Product directionWhat TJNE can discussTypical review pointsBoundary note
Sodium hypochlorite / electro-chlorination cells & componentsElectrolysis cells, MMO anodes, electrode assemblies and related core components for integration into on-site chlorine / NaClO generation systems.Brine or seawater quality, chloride level, output target, flow rate, power conditions, scaling tendency and maintenance plan.Performance indicators such as effective chlorine concentration or energy consumption depend on configuration and operating conditions.
Hydrogen electrolysisHydrogen electrolysis cells, electrode assemblies and related core components for integration into hydrogen production systems.Hydrogen output, pressure, purity, power input, cooling, water quality, connection requirements and installation conditions.Plant design, site installation, site connections and local approvals should be clarified by the project owner, EPC contractor or system integrator.
Components for containerized hydrogen systemsElectrolysis cells and related core components for integration into packaged or containerized hydrogen systems.Hydrogen output, current load, water quality, cooling requirement, electrical interface, footprint and system integration conditions.Packaged-system design, HVAC, utilities, controls, site installation and commissioning remain with the integrator / EPC unless otherwise defined.
Industrial electrolysis cellsCustom electrolytic cells, electrodes, cell components and electrode assemblies for industrial processes.Electrolyte composition, pH, temperature, pressure, current / voltage, corrosion environment and target reaction.Process performance is reviewed based on chemistry and operating conditions, rather than as a generic standard product.

Use this table for early screening · final supply scope and performance criteria must be confirmed by technical review

Applications

Typical use scenarios

Municipal water disinfectionIndustrial water treatmentOn-site sodium hypochlorite generationElectrochemical oxidationhydrogen-related cell componentsIndustrial electrolysis

What helps us evaluate your operating conditions

  • Treatment objective or target output
  • Feed solution / water conditions and available supporting facilities
  • Expected operation mode and installation interface
  • Whether you need cells, electrode assemblies or related components
  • Project timeline and destination market

Discuss Project Details →

Project information

Information useful for initial review

For electrolysis cell and equipment enquiries, the following information helps define a suitable configuration and product scope.

  • Application type, such as sodium hypochlorite generation, hydrogen production or industrial electrolysis
  • Feed water, brine or electrolyte data, including TDS, chloride concentration, pH and temperature
  • Target output, such as chlorine equivalent, hydrogen output in Nm³/h or process rate
  • Operating current, voltage range and duty cycle
  • System interface, including connection requirements, supporting facilities and upstream/downstream equipment
  • Site constraints, automation requirements and operating mode
  • Project stage and expected scope, such as component, cell unit or scoped equipment module
Send Project Details →

Product FAQ

Customer questions about electrochemical cells and units

Answers focused on cell configuration, application fit and cooperation scope.

What applications can TJNE electrochemical cells support?

TJNE electrochemical cells and core components can be discussed for electro-chlorination, sodium hypochlorite generation, hydrogen-related electrolysis, electrochemical oxidation, industrial electrolysis, pilot testing and selected water-treatment-related applications.

Can a cell be configured for an existing process or equipment layout?

Yes. When drawings, installation space, process flow and interface requirements are available, TJNE can review the configuration of the cell or core electrochemical unit for the customer’s equipment layout.

What process information is useful for cell configuration?

Useful information includes the application purpose, feed water or electrolyte composition, flow rate or treatment capacity, temperature, current or current density, voltage range, available space and interface requirements.

What is TJNE's scope for water treatment and hydrogen projects?

For hydrogen projects, TJNE focuses on electrolysis cells and related core components. For water-treatment applications, TJNE focuses on electrodes, electrolysis cells and core electrochemical units. Overall process design, balance-of-system equipment, civil works, dosing, tanks, utilities and site installation should be handled by the project owner, EPC contractor or system integrator unless otherwise defined.
